Article describes how work shift planning impacts overtime calculations. It's intended audience is anyone, who is working with work shift planning.
Image 1

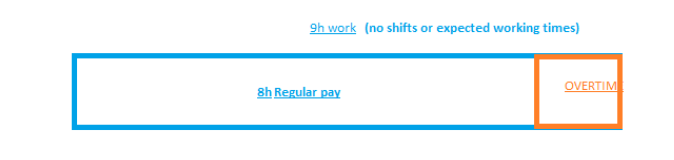

Image one is describing 9 hours work day with no shifts or expected working times.
Image 2

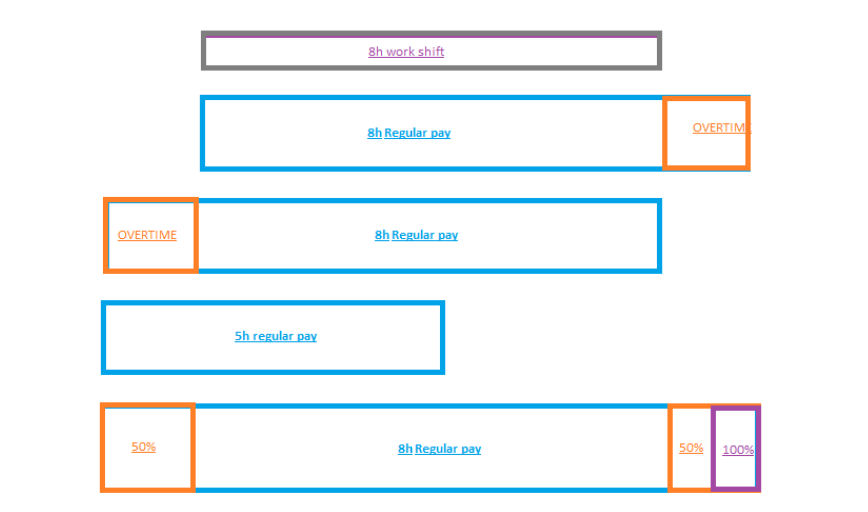

Image 2 is describing how overtime is calculated when 8 hours work shift is published, i.e. 9:00 - 17:00 work shift.
- first graph represents calculation for working hours 9:00 - 19:00 ( 17:00 - 19:00 - 50%)
- second graph represents calculation for working hours 8:00 - 17:00 ( 8:00 - 9:00 - 50%)
- third graph represents calculation for working hours 8:00 - 13:00 (no overtime)
- forth graph represents calculation for working hours 8:00 - 19:00 (8:00 - 9:00 - 50% and 17:00-18:00 - 50 %) ( 18:00 - 19:00 - 100 %)
Image 3
Image 3 is describing how overtime is calculated when expected working times are set to 06:00 - 20:00.
- graph one represents work shift 16:00 - 22:00 ( 6 hours work shift and 2 hours overtime because of expected working time ends at 20:00)
- graph two represents work shift 05:00 - 11:00 ( 6 hours work shift and 1 hour overtime because of expected working time starts at 06:00)
Image 4

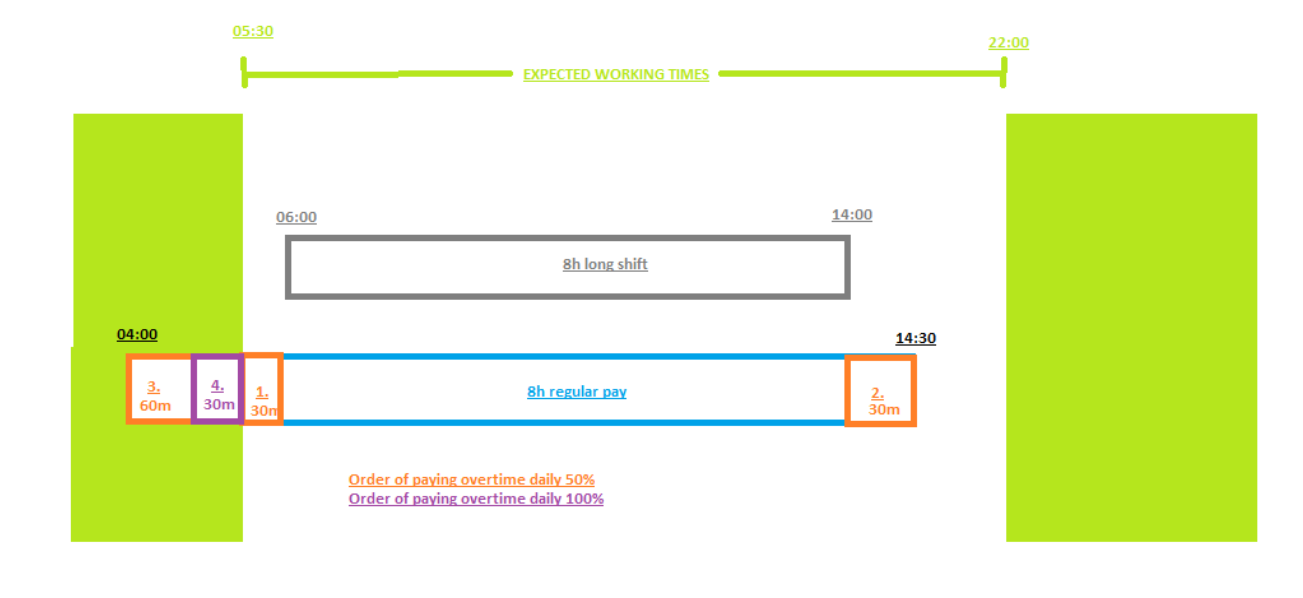

Image 4 is representing expected working times set to 05:30 - 22:00. Work shift is done 04:00 - 14:30 and calculation order is as follows:
1. 5:30 - 6:00 - 30 min 50% overtime
2. 14:00 - 14:30 - 30 min 50% overtime
3. 04:00 - 05:00 - 60 min 50% overtime
4. 05:00 - 05:30 - 30 min 100% overtime
