Configuration
1. Configuring person identifiers

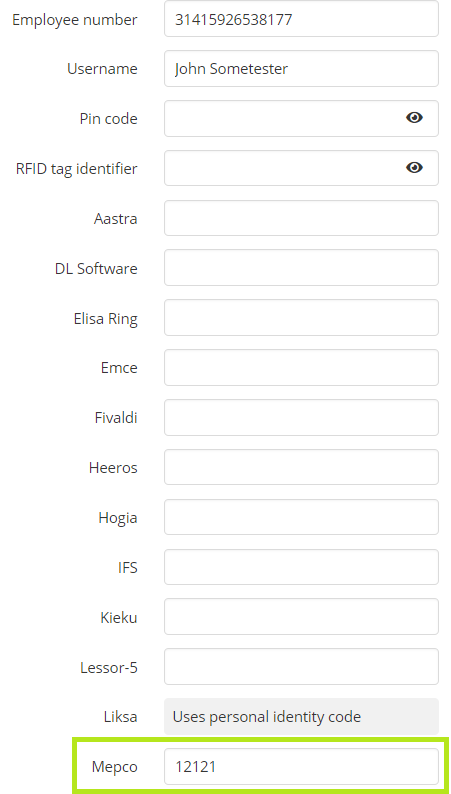

Person's identifiers can be defined by editing persons information in Employees > Person's information > Identifiers - view.
If person has no Mepco-identifier set, person's employee number is used.
2. Integration settings
Settings like salary codes and export options for the integration can be configured in Worktime > Administration > Working community settings > Integrations > Mepco salary export.

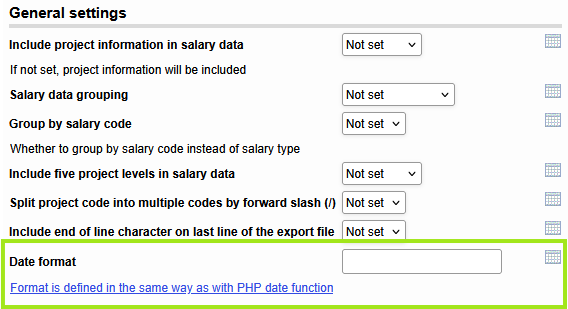

Also the date format of the file can be set in general settings:
For example if the desired date format is DD.MM.YYYY, annetaan asetuksen arvoksi "d.m.Y"
If there is no date format set or it is empty, date format is YYYY-MM-DD
3. Creating a ruleset
Integration can use integration rulesets. Instructions can be found in the article Setting up integration rulesets.
File format
Integration file is in UTF-8 format and the data is a csv file with text values separated with a semicolon (;) . Field lengths can be found in this article's table in Fields - section. Settings for reading and handling the file in Mepco needs to be defined accordingly to these settings.
A semicolon (;) is added after the last row of the file.
In Worktime > Administration > Working community settings > Integrations > Mepco salary export there is a setting "Include five project levels in salary data". If the setting is on, file will have 5 project levels. If the setting is off, only one project level is included in the file. "Include five project levels in salary data" - must be set on in new implementations. Including only one project will be deprecated from the service.
Mepco import can have fields that are defined to be skipped. Using this adding several project levels does not cause the file's column structure to change. These instructions describe the recommended five project level structure. With setting "Split project code into multiple codes by forward slash (/)" a project code can be split to parts with a forward slash. For example if project code 1 is "1234/5678/90", it would be automatically split into project code 1 = "1234", project code 2 = "5678" and project code 3 = "90".
Limitations
- Employees with employee number 0 are not included in the file
- If project code has no value, e.g. it is NULL, project codes are moved to the left. For example if project code 1 and project code 3 have a value and project code 2 is NULL, project code 3's value will be in the project code 2 field. By setting project code 2 empty as "", project codes will have their columns accordingly.
Fields
A ruleset configured for the integration will fill the values automatically. If a field needs to have a customised value, the field can be replaced by setting an override for it by having the ruleset pick a value which is named 'Override' combined with the column name. Field names for using override are represented in the table below. For example by having a rule which picks a field with 'AS OverrideSalaryCode', the picked value will automatically replace the SalaryCode field. More information can be found in Setting up integration rulesets - article.
| Column number | Column contents | Field name used in ruleset | Format | Description |
|---|---|---|---|---|
| 1 | Employee integration ID | Set automatically, can not be replaced | string nvarchar(max) |
Person's Mepco-identifier or employee number if Mepco-identifier is not set |
| 2 | Employee name | Set automatically, can not be replaced | string nvarchar(max) |
|
| 3 | Event begin date | OverrideStartDateTime | date | Date format is according to"Date format" setting. Default format is YYYY-MM-DD
|
| 4 | Event end date | OverrideEndDateTime | date | Date format is according to"Date format" setting. Default format is YYYY-MM-DD
|
| 5 | Amount | OverrideAmount | decimal | Decimal separated with a dot, two decimals. E.g. 12.50 |
| 6 | Salary code | OverrideSalaryCode | string nvarchar(max) |
Ruleset rule's salary code |
| 7 | Project code 1 | OverrideProjectCode1 | string nvarchar(255) |
Project code 1 |
| 8 | Project code 2 | OverrideProjectCode2 | string nvarchar(255) |
Project code 2. Note: included when "Include five project levels in salary data" - setting is on. |
| 9 | Project code 3 | OverrideProjectCode3 | string nvarchar(255) |
Project code 3. Note: included when "Include five project levels in salary data" - setting is on. |
| 10 | Project code 4 | OverrideProjectCode4 | string nvarchar(255) |
Project code 4. Note: included when "Include five project levels in salary data" - setting is on. |
| 11 | Project code 5 | OverrideProjectCode5 | string nvarchar(255) |
Project code 5. Note: included when "Include five project levels in salary data" - setting is on. |
| 12 | Ruleset rule name | Set automatically, can not be replaced | string nvarchar(max) |
Name of the ruleset rule |
| 13 | Project IDs | Set automatically, can not be replaced | string nvarchar(max) |
List of internal project identifiers separated with a forward slash, e.g: 1234/4342/5343 |
| 14 | Project ID of related project | Set automatically, can not be replaced | integer | Identifier of the first related project (might be required in some ERP-systems) |
| 15 | Project names | Set automatically, can not be replaced | string nvarchar(max) |
List of project names separated with a forward slash |
| 16 | Cost group | OverrideUserCostGroup | string nvarchar(max) |
Can be replaced by using OverrideUserCostGroup |
| 17 | Setting group code | Set automatically, can not be replaced | string nvarchar(max) |
Code of person's setting group |
| 18 | Custom data 1 | CustomData1 | string nvarchar(max) |
Can be used on adding customised data in the export, e.g. 'test1' as CustomData1 |
| 19 | Custom data 2 | CustomData2 | string nvarchar(max) |
Can be used on adding customised data in the export, e.g. 'test2' as CustomData2 |
| 20 | Custom data 3 | CustomData3 | string nvarchar(max) |
Can be used on adding customised data in the export, e.g. 'test3' as CustomData3 |
| 21 | Custom data 4 | CustomData4 |
string |
Can be used on adding customised data in the export, e.g. 'test4' as CustomData4 |
| 22 | Custom data 5 | CustomData5 |
string |
Can be used on adding customised data in the export, e.g. 'test5' as CustomData5 |
| 23 | Custom data 6 | CustomData6 |
string |
Can be used on adding customised data in the export, e.g. 'test6' as CustomData6 |
| 24 | Custom data 7 | CustomData7 |
string |
Can be used on adding customised data in the export, e.g. 'test7' as CustomData7 |
| 25 | Custom data 8 | CustomData8 |
string |
Can be used on adding customised data in the export, e.g. 'test8' as CustomData8 |
| 26 | Custom data 9 | CustomData9 |
string |
Can be used on adding customised data in the export, e.g. 'test9' as CustomData9 |
CustomData4-CustomData9 fields are included in the export file only if they have been added to be selected in the ruleset rule. If even one of CustomData4 - CustomData9 fields is added to be selected in the ruleset, all CustomData4 - CustomData9 columns are included in the file, and the CustomData - fiels that don't have a value are exported as empty fields.
Example
Below is an example of a file which has one persons salary items for two days.
72144; Elisa Example;2011-01-03;2011-01-03;4.00;1012;16141;20234;;;;Regular working hours;10437;10437;20234/Packing;200;500;;; 72144; Elisa Example;2011-01-04;2011-01-04;3.50;1012;16141;20234;;;;Regular working hours;10437;10437;20234/Packing;200;500;;;
