About
Nepton can be configured to send event approvals to IFS. Data is sent when approving or unapproving events. Approval or unapproval will not be saved unless IFS returns a positive response.
A SOAP web service on IFS (or an intermediate system such as BizTalk) is required to send the data to. The WSDL schema for this web service is described below.
Setup instructions
1) Set up employees

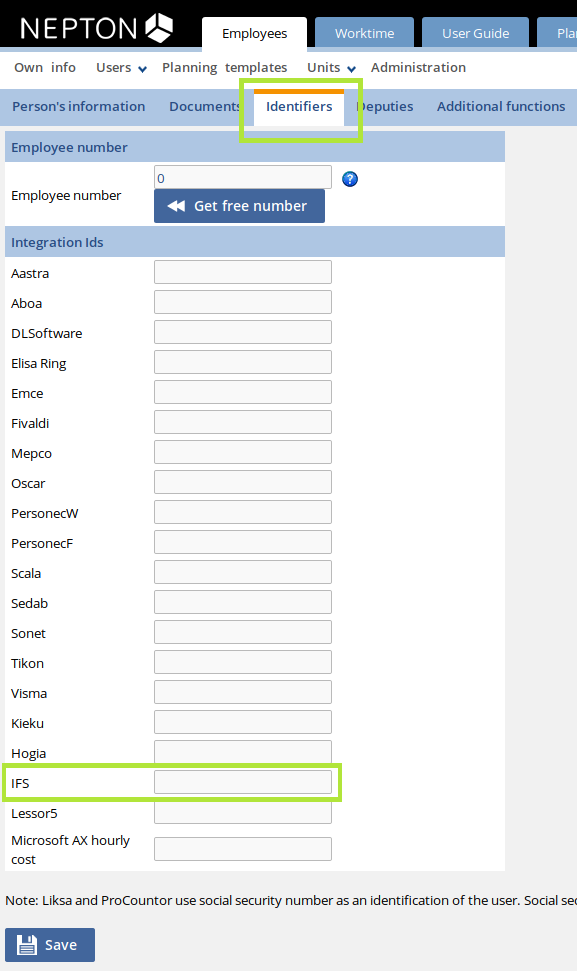

The person IDs for the export can be configured in Employees by editing a person's information and clicking on the Identifiers tab and then editing the IFS field. Note that if person's IFS ID is not set, personnel number is used instead.
2) Configure sending data to the web service
The used web service end point and company name / identifier sent in the web service request can be configured in Worktime > Administration > Working community settings > Integrations > IFS Event approval. If API key authentication is used in the integration, it is set in the same place.
Web service endpoint and API key can be set on setting group level as well, from Worktime > Administration > Setting group > Setting group dronpdown: Desired setting group > Action drondpon: Setting group settings > Integrations > IFS Event approval.
Limitations
- Persons with personnel number 0 will not be included
- If approving or unapproving a person's hours could not be processed by receiving end, action is not done in Nepton for that person
- Single event approvals are not supported as approved / unapproved days are sent instead. To disable approval / unapproval of single events you can turn "Approve events by day" on from Worktime -> Administration -> Working community settings -> Work hours -> Event locking and approval.
Export trigger
The export is not scheduled but is triggered in real-time when approving or unapproving events. Export is not triggered when approving single events.
Sent data
| Level | Field name | Format | Occurs | Notes |
|---|---|---|---|---|
| Root, under SOAP body |
AUTHORIZE_REPORT | XML element | 1 | |
| 1 | COMPANY | string (20) | 0..1 | Company name / identifier which is given in integration settings |
| 1 | EMP_ID | string (11) | 0..1 | Employee ID of the employee approving / unapproving events |
| 1 | AUTHORIZE_TRANSACTIONS | XML element | 1 | |
| 2 | AUTHORIZE_TRANSACTION | XML element | 0..n | |
| 3 | START_DATE | date | 1 | Approved from date, format YYYY-MM-DD
|
| 3 | END_DATE | date | 0..1 | Approved to date, format YYYY-MM-DD
|
| 3 | STATE | string (1) | 1 | Approval state:
|
| 3 | AUTH_ID | string (20) | 1 | Employee ID of the employee whose events are being approved / unapproved |
Request example:
<?xml version="1.0" encoding="UTF-8"?>
<soapenv:Envelope xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/" xmlns:wo="WO.fi.TyoTeho.Schemas.AuthorizationFromTyoTeho">
<soapenv:Header/>
<soapenv:Body>
<wo:AUTHORIZE_REPORT>
<wo:COMPANY>CompanyID</wo:COMPANY>
<wo:EMP_ID>1230</wo:EMP_ID>
<wo:AUTHORIZE_TRANSACTIONS>
<wo:AUTHORIZE_TRANSACTION>
<wo:START_DATE>2019-06-01</wo:START_DATE>
<wo:END_DATE>2019-06-30</wo:END_DATE>
<wo:STATE>1</wo:STATE>
<wo:AUTH_ID>1240</wo:AUTH_ID>
</wo:AUTHORIZE_TRANSACTION>
<wo:AUTHORIZE_TRANSACTION>
<wo:START_DATE>2019-06-01</wo:START_DATE>
<wo:END_DATE>2019-06-30</wo:END_DATE>
<wo:STATE>1</wo:STATE>
<wo:AUTH_ID>1250</wo:AUTH_ID>
</wo:AUTHORIZE_TRANSACTION>
</wo:AUTHORIZE_TRANSACTIONS>
</wo:AUTHORIZE_REPORT>
</soapenv:Body>
</soapenv:Envelope>
Expected response
This API requires a direct response for the sent request. Request format is the following:
| Level | Field name | Format | Occurs | Notes |
|---|---|---|---|---|
| Root, under SOAP body |
Response | XML element | 1 | |
| 1 | Success | boolean | 1 | Whether sending approvals / unapprovals was successful or not |
| 1 | Message | string | 0..1 | Optional message, used for error message in case of a failure or returning a list of IFS IDs / personnel numbers for persons whose event approval / unapproval was successful. Personnel numbers are comma separated. |
Response example:
<?xml version="1.0" encoding="UTF-8"?>
<SOAP-ENV:Envelope xmlns:SOAP-ENV="http://schemas.xmlsoap.org/soap/envelope/" xmlns:ns1="http://WO.fi.TyoTeho.Schemas.TimeReportResponse">
<SOAP-ENV:Body>
<ns1:Response>
<Success>true</Success>
<Message>1011,2011,3011</Message>
</ns1:Response>
</SOAP-ENV:Body>
</SOAP-ENV:Envelope>
